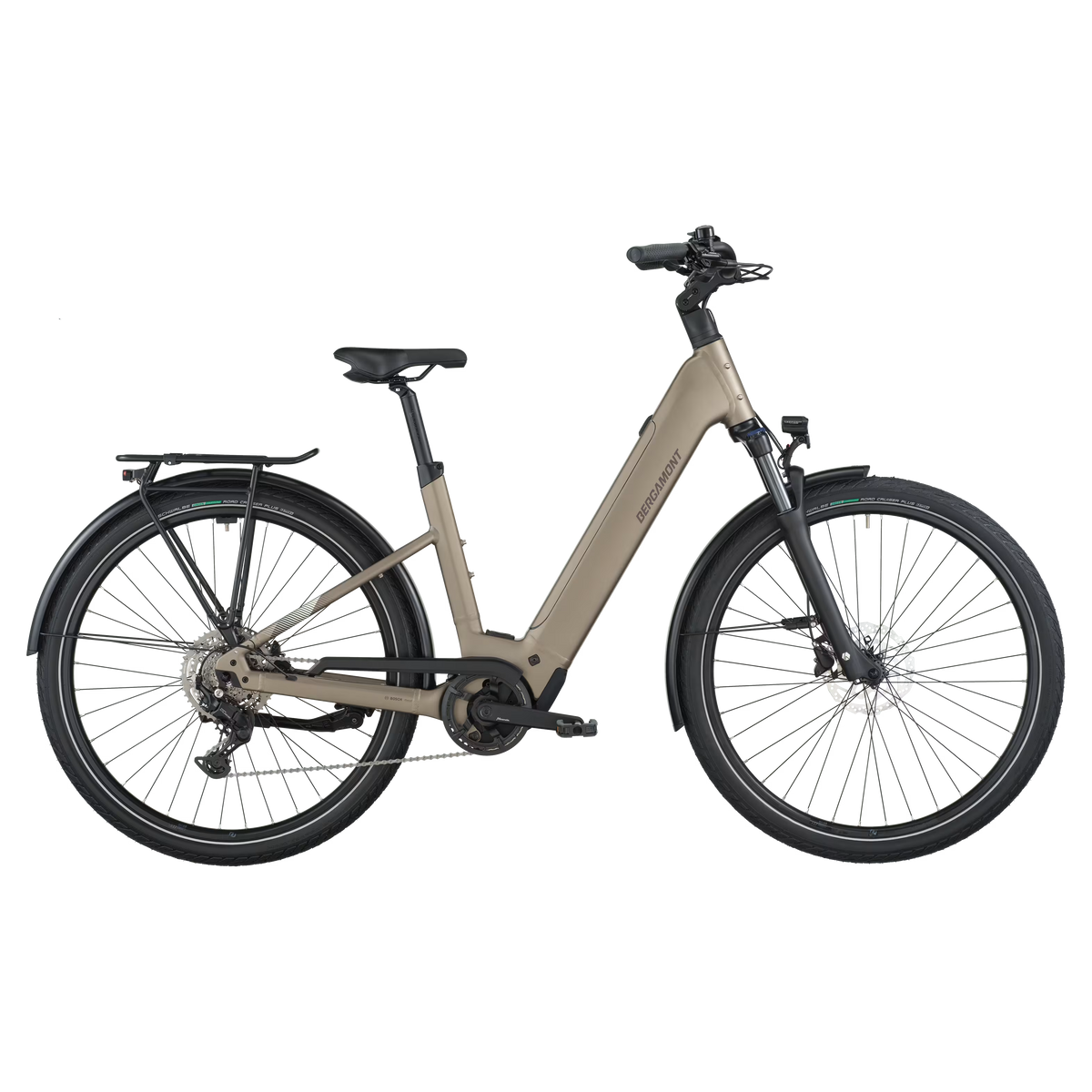

Bergamont E-Horizon Sport 30 Wave

The Bergamont E-Horizon Sport 30 Wave electric bike is a trekking bike with a low-step Wave frame, designed for everyday use in town and beyond. It has a Bosch motor, 540 Wh battery and rack with an approved child seat.

• Get on and off easily thanks to the low-step aluminium Wave frame
• Bosch Performance Line 250 W motor, assistance up to 25 km/h
• Bosch PowerTube 540 Wh battery integrated into the frame
• Brake confidently with Shimano hydraulic disc brakes and 180 mm rotors
• LED lights with brake light, mudguards and a 27 kg rack for everyday use
• How to choose: size L for 174-186 cm, XL for 183-195 cm

Technical specifications

• Frame: AL-6061 aluminium, 28", low-step, integrated PowerTube battery
• Motor: Bosch Performance Line Smart System, 250 W, 36 V, assistance up to 25 km/h
• Battery: Bosch PowerTube, 36 V, 540 Wh
• Display: Bosch Purion 200
• Rear derailleur: Shimano Cues 1x9, CS-LG400-9 11-46T cassette
• Brakes: Shimano BR-MT200 hydraulic disc brakes, SM-RT10 180 mm rotors
• Fork: Suntour NVX32 NLO DS, 100 mm travel
• Tyres: Schwalbe Road Cruiser Plus 55-622, reflective sidewalls
• Rack: Racktime BGM Trekking Pro Snapit 2.0, load capacity 27 kg
• Maximum system weight: 130 kg

Get on and off easily thanks to the low-step aluminium Wave frame | Bosch Performance Line 250 W motor, assistance up to 25 km/h | Bosch PowerTube 540 Wh battery integrated into the frame | Brake confidently with Shimano hydraulic disc brakes and 180 mm rotors | LED lights with brake light, mudguards and a 27 kg rack for everyday use | How to choose: size L for 174-186 cm, XL for 183-195 cm

Frame: 28", super-light AL-6061 tubing, PowerTube battery
Fork: Suntour NVX32 NLO DS, 100 mm
Headset: Acros, A-Headset, semi-integrated, tapered, with integrated cable routing
Rear derailleur: Shimano Cues, RD-U4000, Shadow
Shifters: Shimano Cues, SL-U4000, 1x9-velocità, rapidfire plus-shifter
Brake levers: Shimano BL-MT200, hydraulic disc brake
Brakes: Shimano BR-MT200, hydraulic disc brake
Crankset: Miranda Virage, 170 mm, 38t
Bottom bracket: Bosch, Isis
Handlebar: Syncros 3.0, riser handlebar, backsweep: 40°, rise: 40 mm
Stem: Syncros, with SP Connect mount, adjustable
Pedals: Aluminium trekking
Seatpost: Syncros
Saddle: Syncros Capilano City
Front hub: Shimano HB-QC400, centerlock, disc, quick release
Rear hub: Shimano FH-QC300, centerlock, disc, quick release
Chain: Shimano CN-LG500
Cassette: Shimano Cues, CS-LG400-9, 11-46t
Spokes: Steel, black
Rim: Syncros X17, disc, eyelets
Lights: Front: Lezyne Mini E300, 100 Lux, LED, Rear: LED, with brake light function
Accessories: Kickstand: Syncros U-mount
Weight in kg (approx.): 30
Motor: Bosch Smart System, Performance Line (BDU346Y), 250 W, 36 V, maximum 25 km/h
Battery: Bosch PowerTube, 36 V Li Ion, 540 Wh
Display: Bosch Purion 200
Charger: Bosch Smart System, 2 A
Brake rotor: Shimano SM-RT10, 180 mm
Grips: Syncros Urban, Ergo, dual-density, lock-on
Front tyre: Schwalbe Road Cruiser Plus, reflective strip, 55-622, Inner tube: Schwalbe AV19B Light
Rear tyre: Schwalbe Road Cruiser Plus, reflective strip, 55-622, Inner tube: Schwalbe AV19B Light
Rack: Racktime / BGM Trekking Pro, Snapit 2.0 System
Mudguard: Curana Apollo, with stainless steel stays
Total weight: 130.0 kg, The total weight includes the bike, rider, equipment and any additional luggage.

Bergamont traces its origins to 1993, in a small workshop in Hamburg, and is associated with founder Stefan Berkes. Today it is based in the St. Pauli district and offers gravel bikes, urban and trekking e-bikes, and electric cargo bikes. Its story begins beside the Schlachthof, the city’s historic slaughterhouse.
