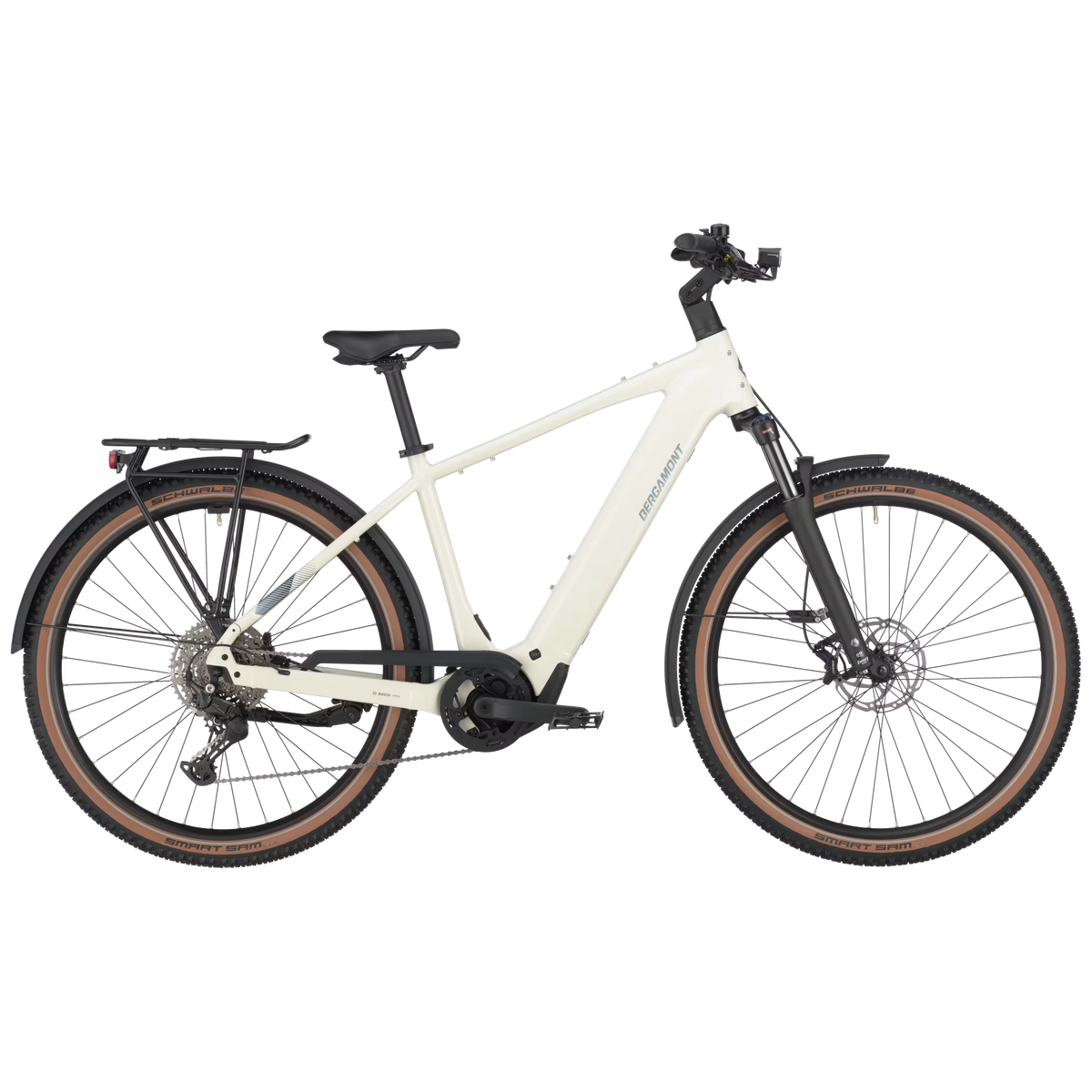

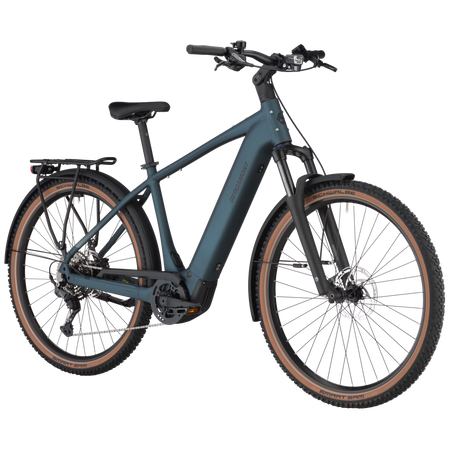

Bergamont E-Horizon SUV 30

The Bergamont E-Horizon SUV 30 is a trekking e-bike with a Bosch Performance Line CX motor and 600 Wh battery. It suits commuting, outings or taking the children along, including on unpaved tracks.

• Bosch Performance Line CX 250 W motor: strong assistance on climbs and mixed routes
• PowerTube 600 Wh battery in the frame, removable for charging wherever you want
• Rack approved for a child seat, with Snapit 2.0 system for bags and accessories
• Tektro 4-piston hydraulic disc brakes and LED lights with brake light
• Choose from sizes S, M, L and XL (XL in petrol blue only)

Technical specifications

• Motor: Bosch Smart System, Performance Line CX, 250 W, 36 V, maximum 25 km/h
• Battery: Bosch PowerTube, 36 V Li Ion, 600 Wh
• Frame: AL-6061 aluminium, 28"
• Fork: Suntour XCM34 DS, 100 mm
• Rear derailleur: Shimano Cues, 1x10-speed
• Cassette: Shimano Cues CS-LG400-10, 11-48t
• Brakes: Tektro HD-M745, hydraulic disc, 4 pistons
• Tyres: Schwalbe Smart Sam, 57-622
• Weight: Approx. 28.6 kg
• Maximum total weight: 130.0 kg (bike, rider, equipment and luggage)

Bosch Performance Line CX 250 W motor: strong assistance on climbs and mixed routes | PowerTube 600 Wh battery in the frame, removable for charging wherever you want | Rack approved for a child seat, with Snapit 2.0 system for bags and accessories | Tektro 4-piston hydraulic disc brakes and LED lights with brake light | Choose from sizes S, M, L and XL (XL in petrol blue only)

Frame: 28", super-light AL-6061 tubing, PowerTube battery
Fork: Suntour XCM34 DS, 100 mm, 15x110 mm axle
Headset: Acros, A-Headset, semi-integrated, tapered, with integrated cable routing
Rear derailleur: Shimano Cues, RD-U6000, Shadow Plus
Shifters: Shimano Cues, SL-U6000, 1x10-velocità, rapidfire plus-shifter
Brake levers: Tektro HD-M745, hydraulic disc brake
Brakes: Tektro HD-M745, hydraulic disc brake, 4 pistons
Crankset: FSA CK-745, 170 mm, 38t
Bottom bracket: Bosch, Isis
Handlebar: Syncros 3.0, riser handlebar, backsweep: 15°, rise: 12 mm
Stem: Satori Python, adjustable
Pedals: Aluminium trekking, platform
Seatpost: BGM Pro
Saddle: Syncros Capilano Trekking
Front hub: Shimano HB-TC500-B, centerlock, disc, 15x110 mm axle
Rear hub: Shimano FH-QC400, centerlock, disc, quick release
Chain: Shimano Linkglide, CN-LG500
Cassette: Shimano Cues, CS-LG400-10, 11-48t
Spokes: Stainless steel, black
Rim: Cross X18, disc, eyelets, width: 30 mm
Lights: Front: Trelock LS830, 80 Lux, LED, Rear: Axa Juno, LED, with brake light function
Accessories: Kickstand: Syncros U-mount
Weight in kg (approx.): 28,6
Motor: Bosch Smart System, Performance Line CX, 250 W, 36 V, maximum 25 km/h
Battery: Bosch PowerTube, 36 V Li Ion, 600 Wh
Display: Bosch Purion 200
Charger: Bosch standard charger, 4A
Brake rotor: Tektro TR180-35, 180 mm
Grips: Syncros Urban, Ergo, dual-density, lock-on
Front tyre: Schwalbe Smart Sam, Performance, Addix, reflective strip, 57-622, Inner tube: Schwalbe AV19B Light
Rear tyre: Schwalbe Smart Sam, Performance, Addix, reflective strip, 57-622, Inner tube: Schwalbe AV19B Light
Rack: Racktime / BGM Trekking Pro, Snapit 2.0 System
Mudguard: Curana Orbit, with stainless steel stays
Chainguard: Integrated into the motor cover
Total weight: 130.0 kg, The total weight includes the bike, rider, equipment and any additional luggage.
